ALUSLIDE – 12

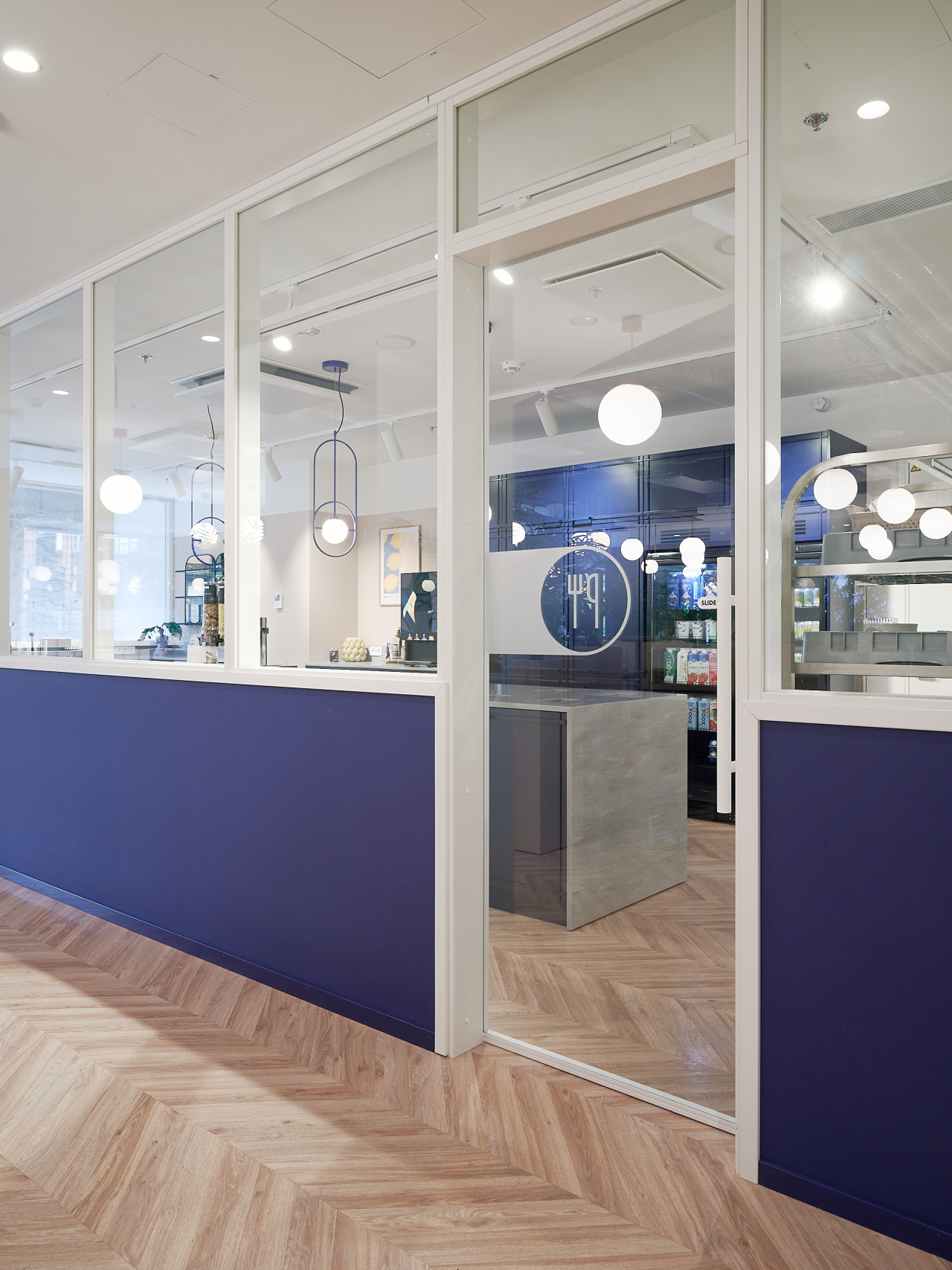

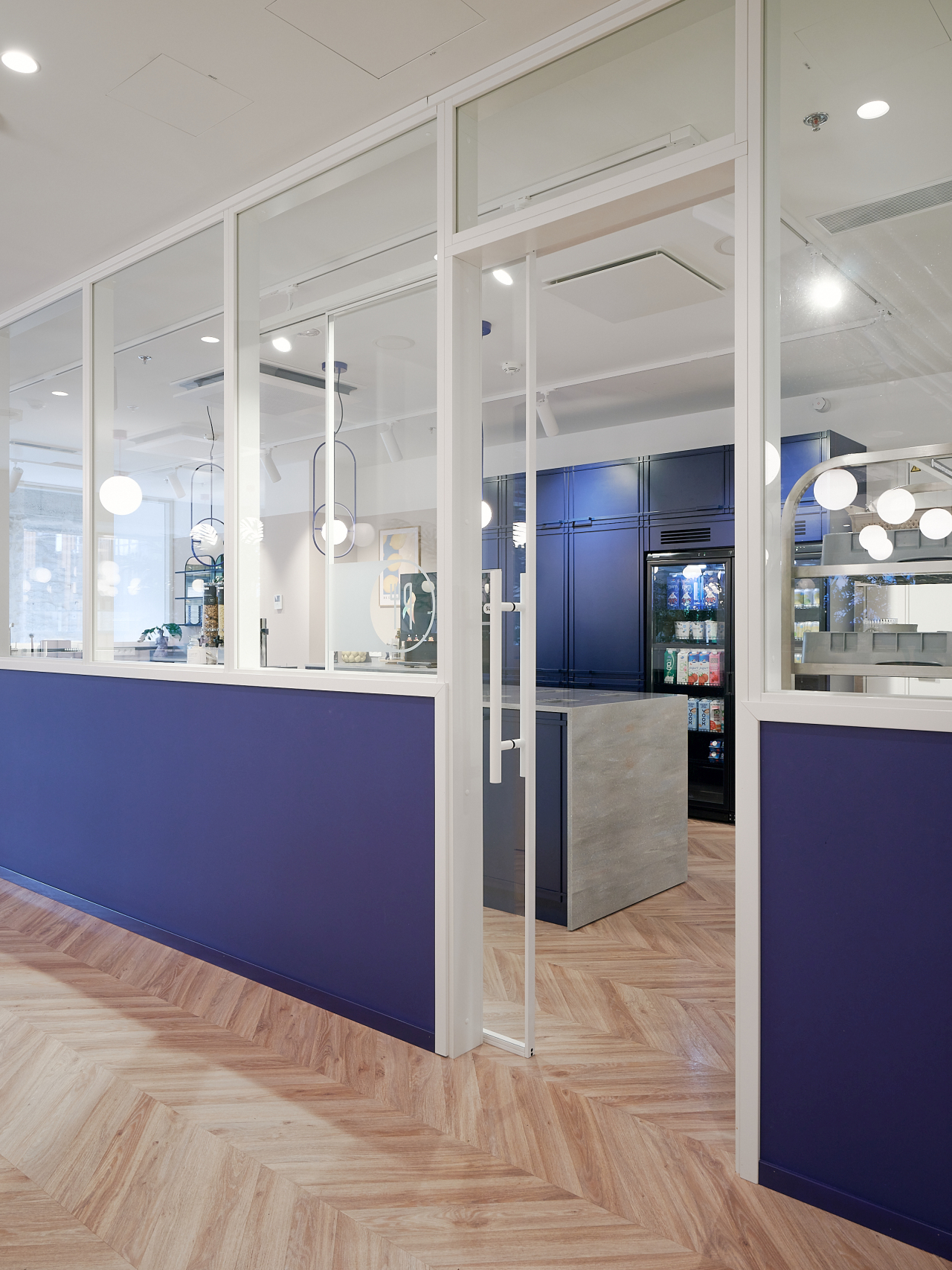

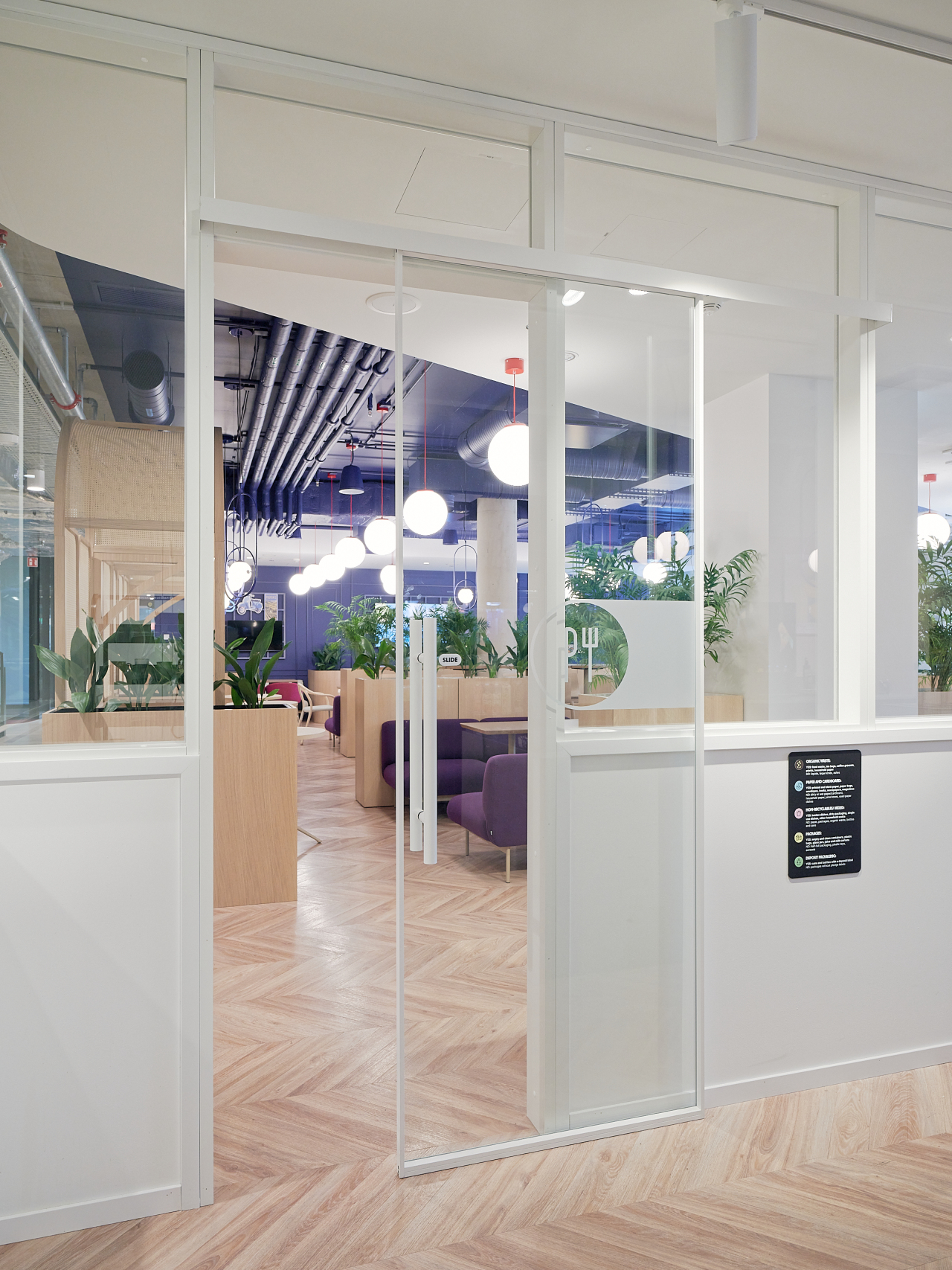

ALUSLIDE-12 is a glass sliding door with aluminium frame for glasses between 8 - 8,76mm.

image (107)

This product is EPD certified!

The certificate can be downloaded either from the RTS database by typing "structo" to the search box and selecting the corresponding certificate from the list or from the Documents section that is located in the bottom of this page.

Maximum door height:

2600 mm*

* with 8mm glass and if width max 1000mm

Maximum door width:

1250 mm*

* with 8mm glass and if height max 2100mm

Suitable glasses with a thickness:

8 – 8,76 mm

Technical Description

CBC5C2C1-92A5-4B07-AEC0-67D6B9485190

Door profile dimensions are 12x33mm.

The standard surface finish of aluminum profiles is natural (silver) anodizing, but it is also possible to order a painted surface according to the RAL colour catalogue.

Possible types of glass are tempered, laminated or tempered-laminated.

The surface of the glass can be bright, very bright, mass-tinted, background-painted or matte.

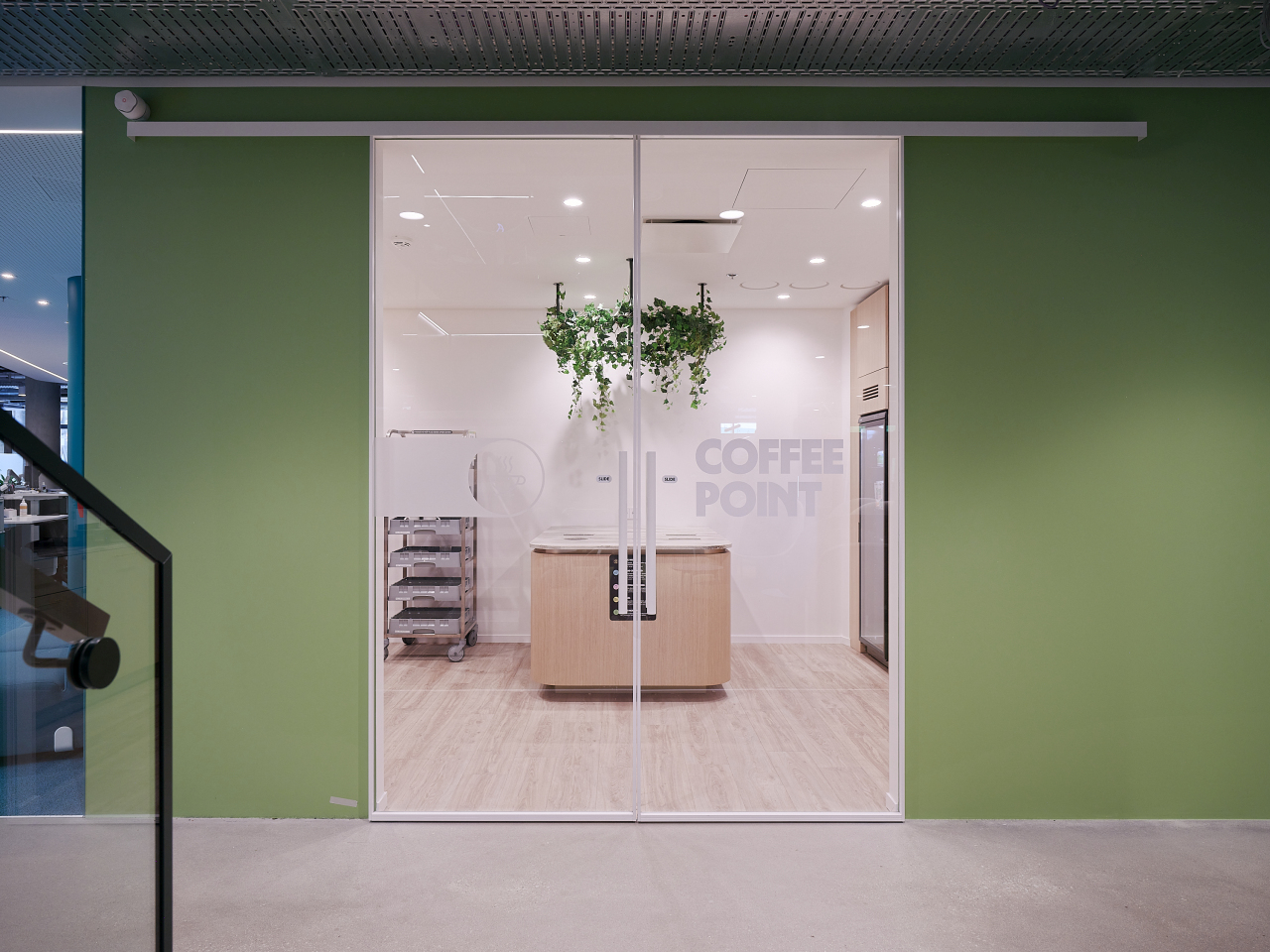

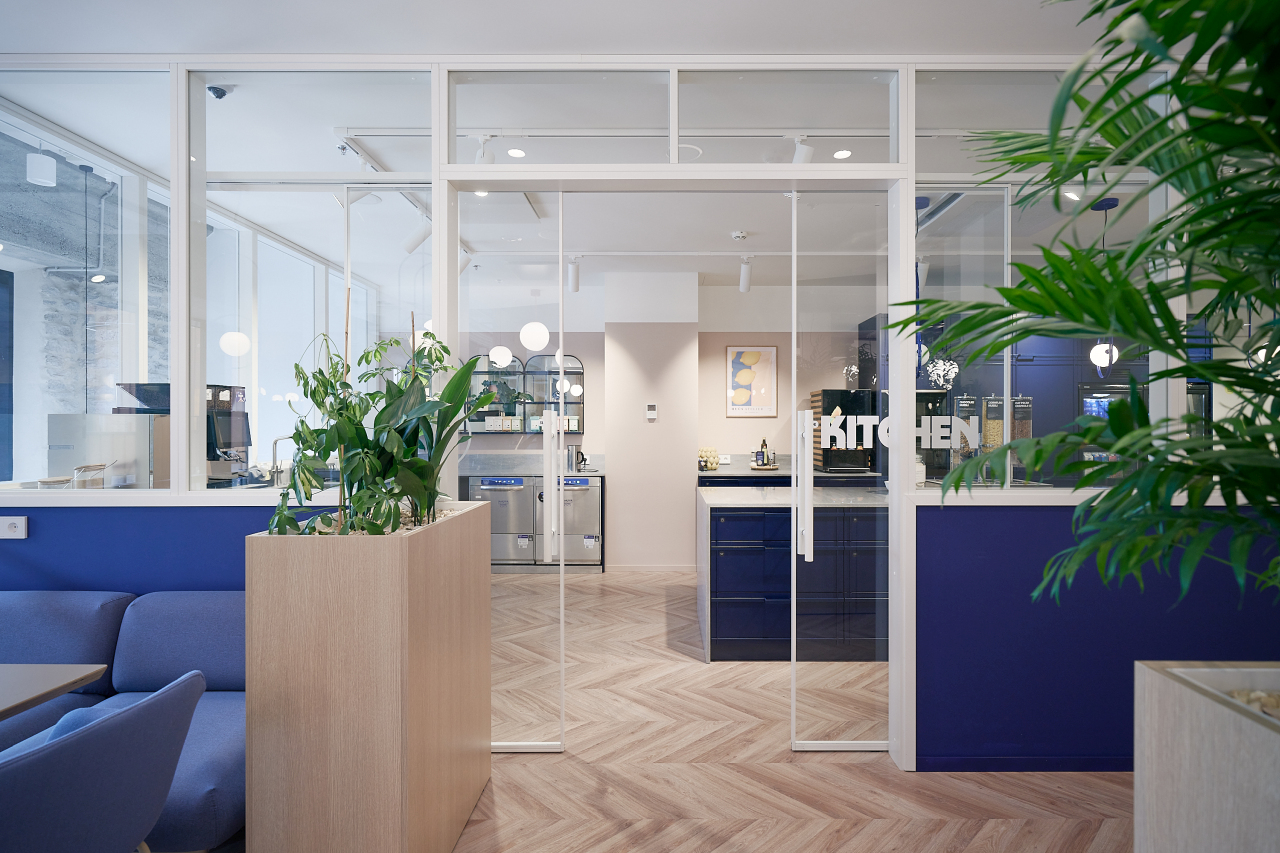

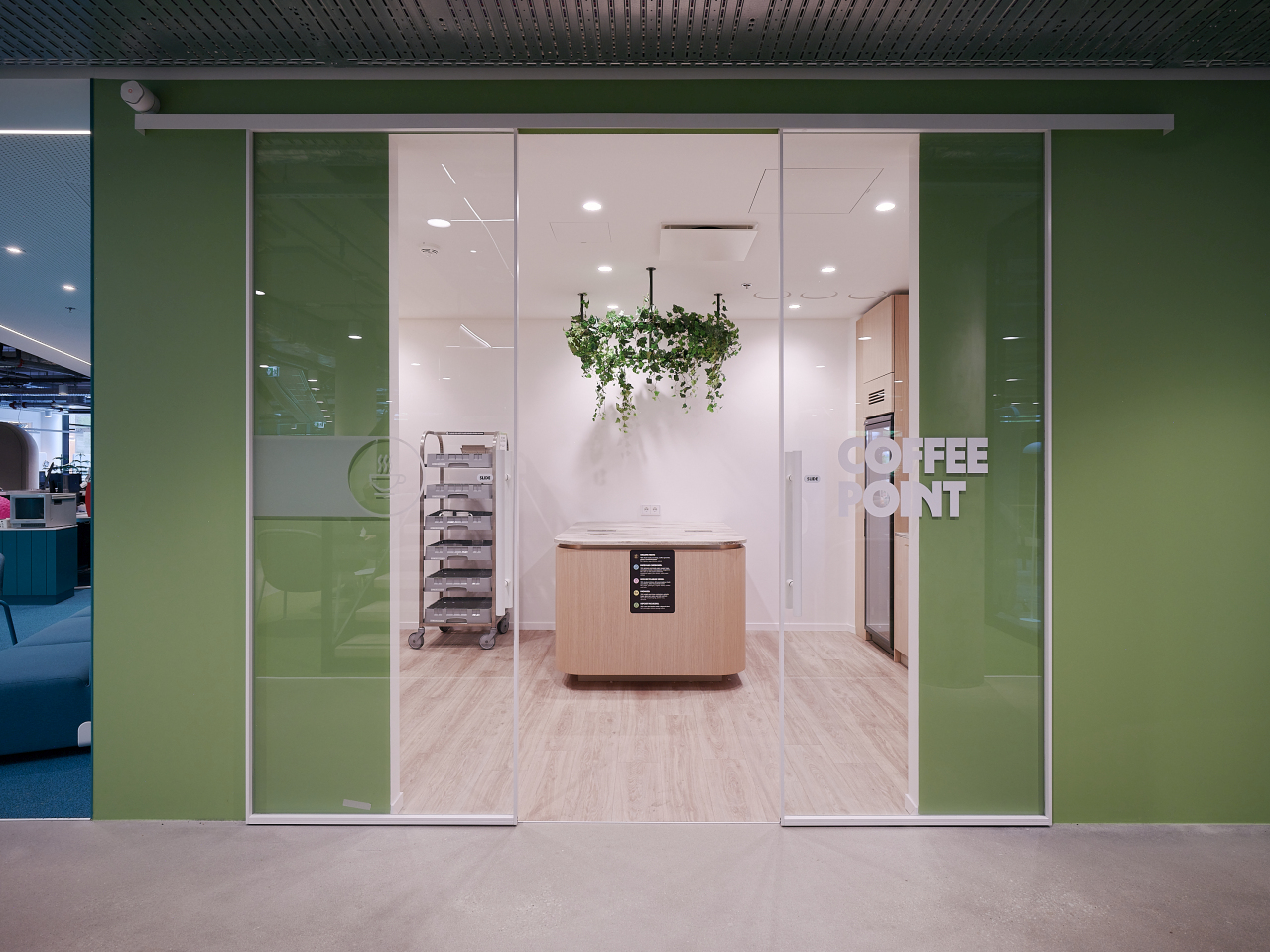

Door panels are available as single or pair doors. Aluminum decor profiles can be glued anywhere on the glass, which can give the door panel an exciting and contrasting look.

Standard lock case is ASSA 310, but it is possible to use different lock cases. Other hardware (cylinder and/or twist knob must be compatible with chosen lock case).

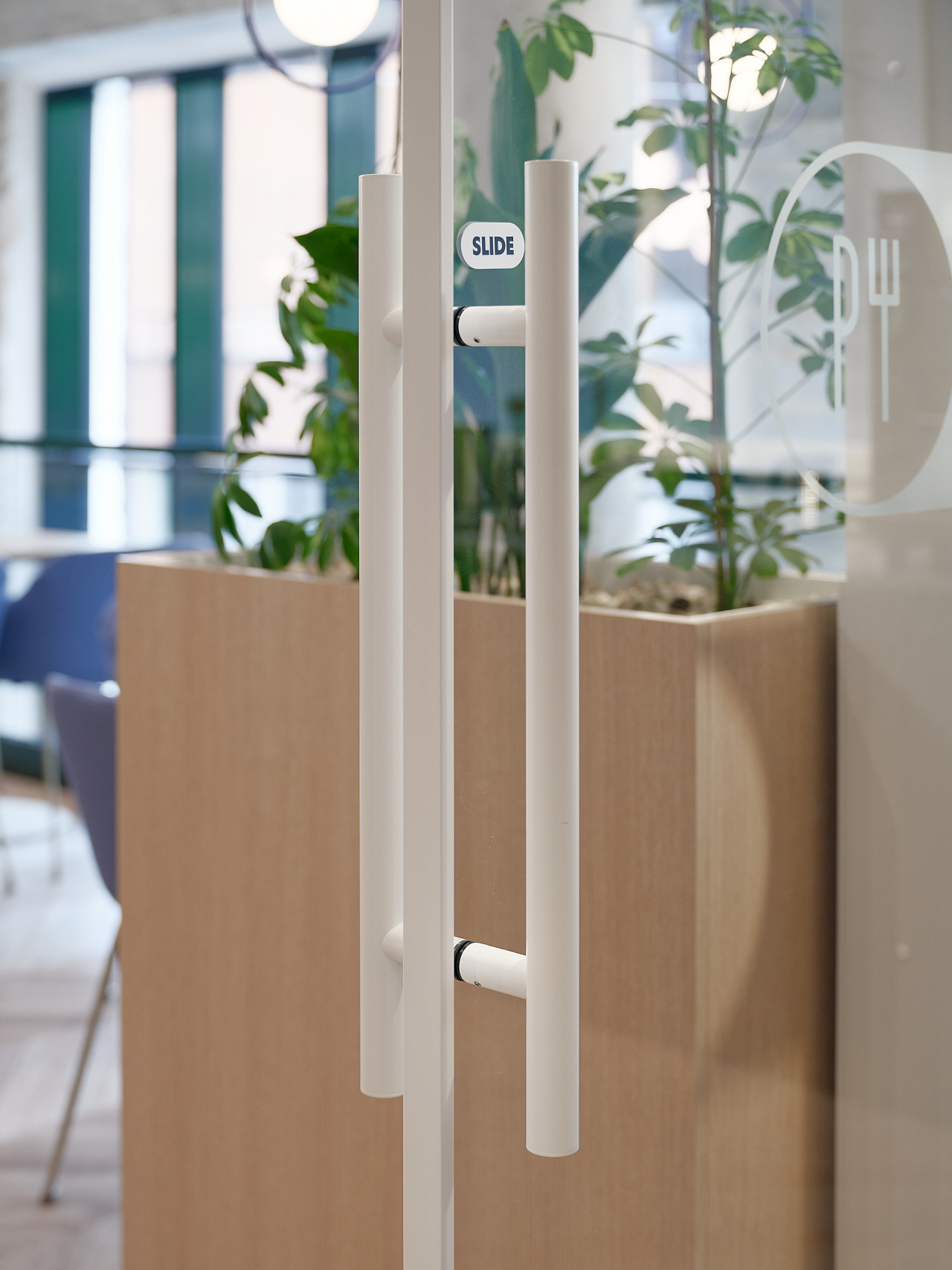

Standard handle is a built in sliding door handle (round 34/54mm), but it is also possible to use other handles.

The structures adjacent to the product must be strong enough to allow profiles to be attached to them.
