PORTA – 53GF

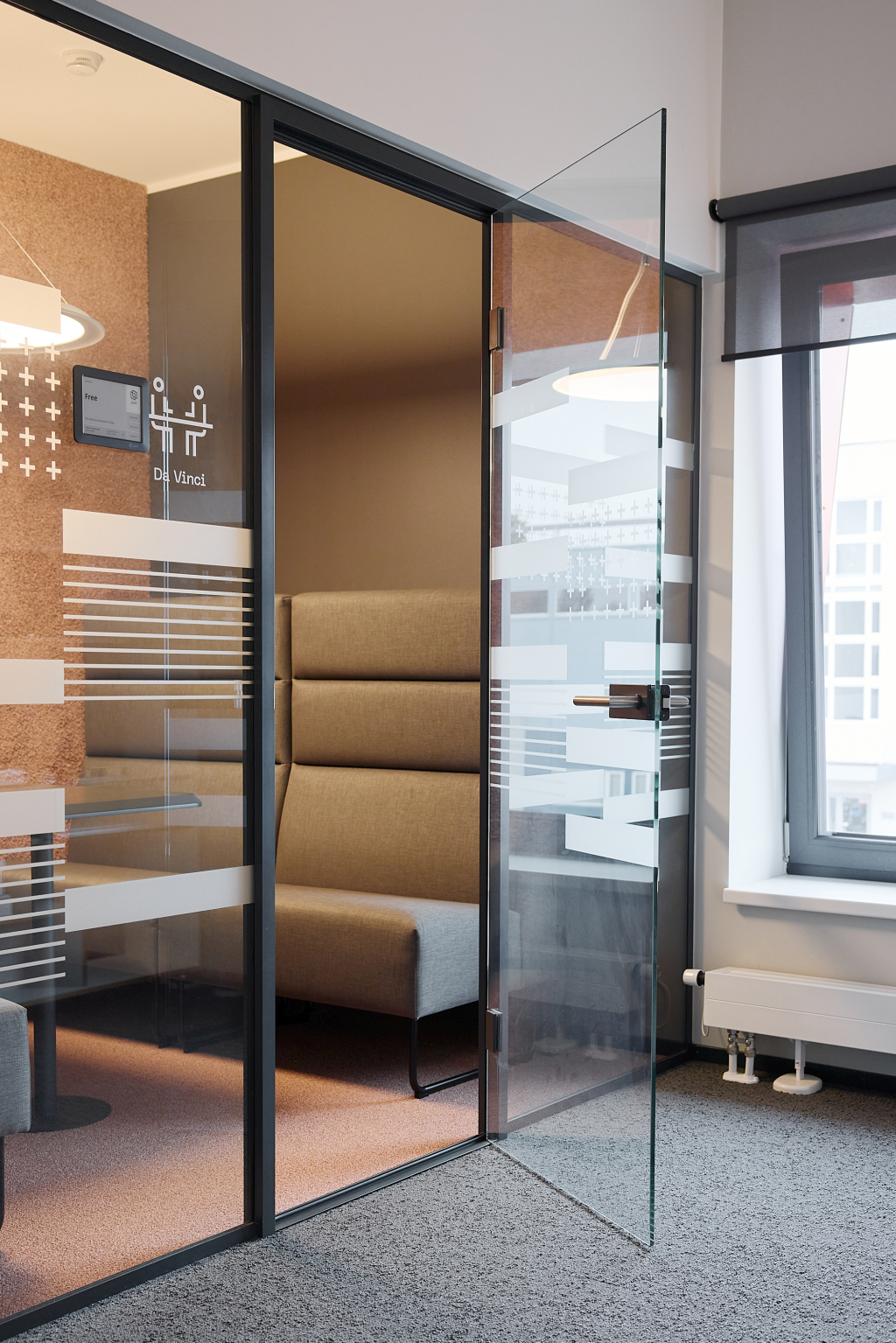

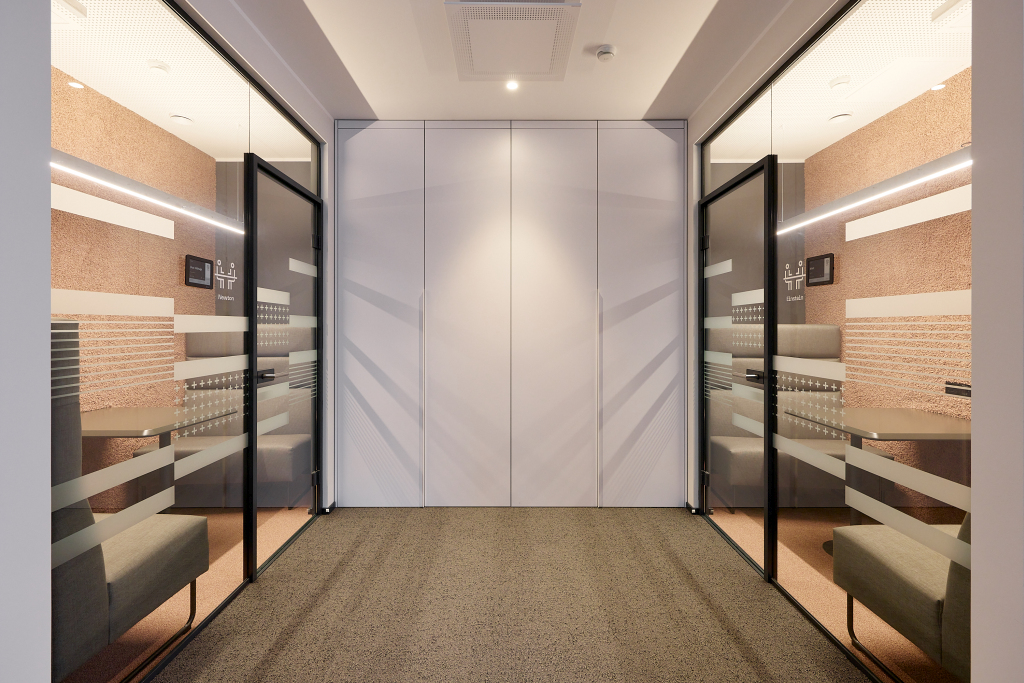

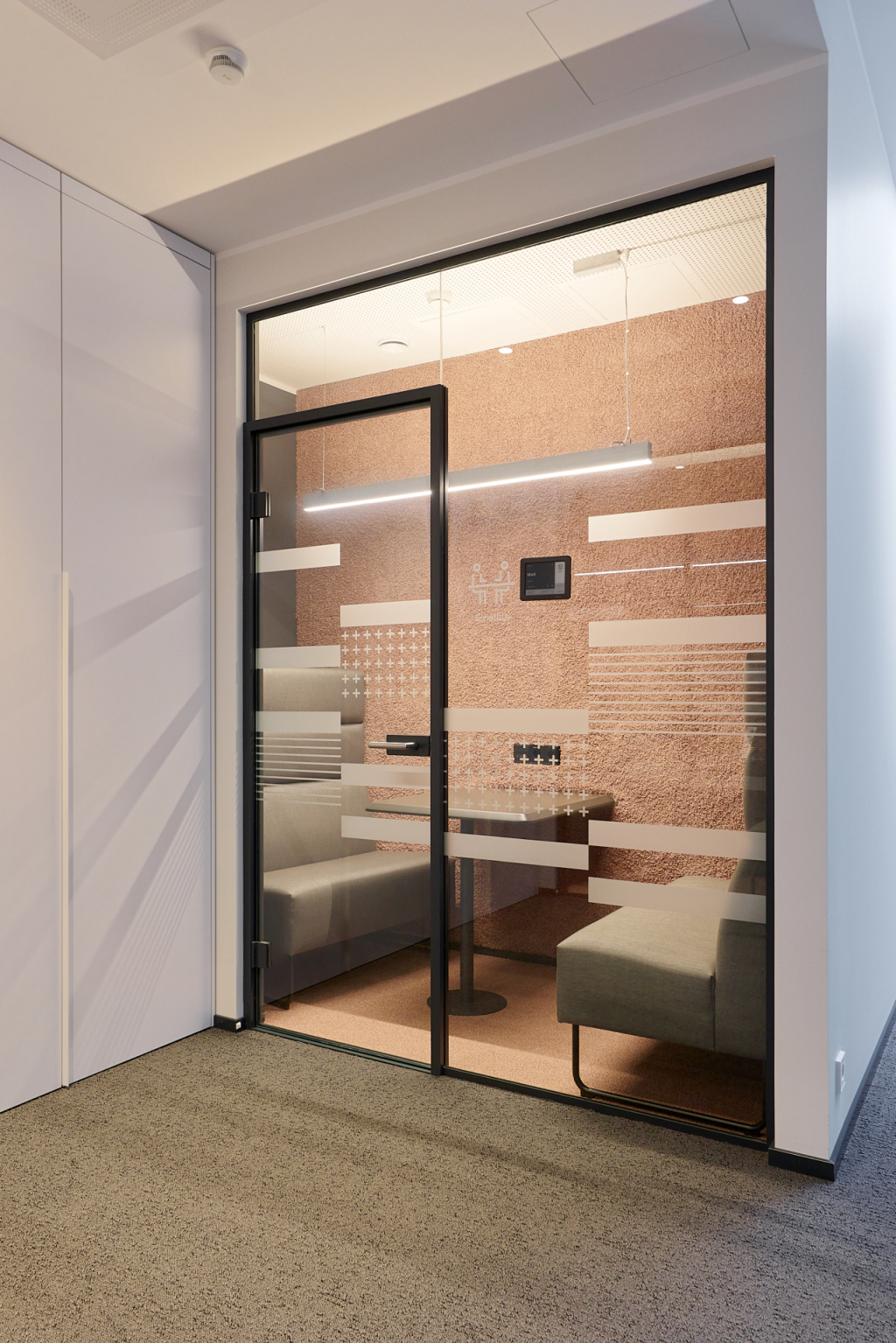

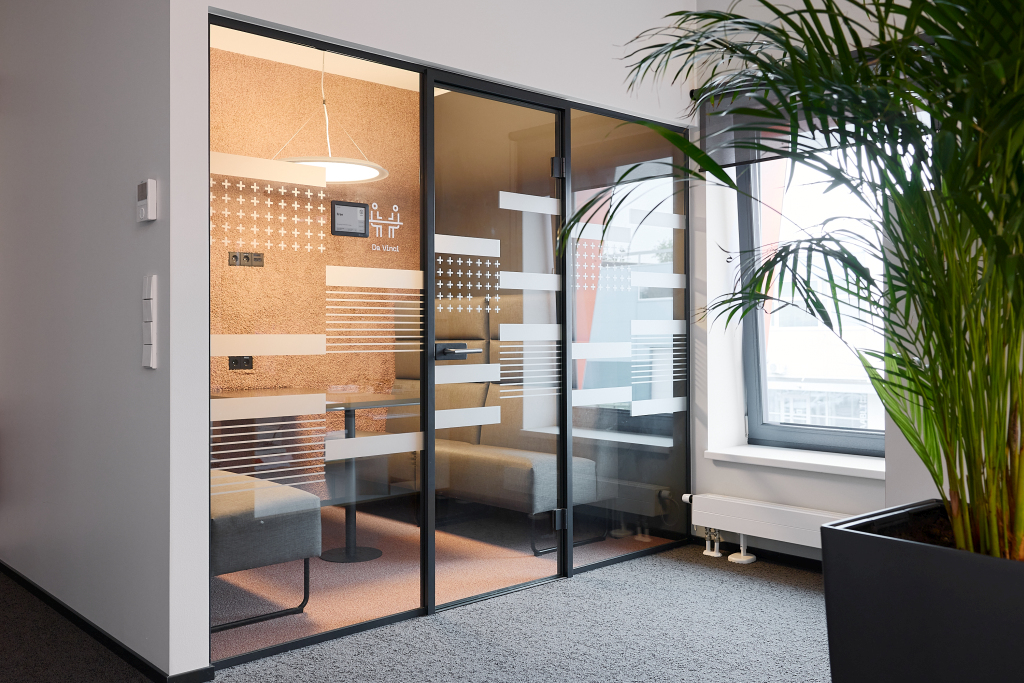

PORTA-53GF is a portal system with glass door with aluminum door frame and overlight without vertical profiles.

image (107)

This product is EPD certified!

The certificate can be downloaded either from the RTS database by typing "structo" to the search box and selecting the corresponding certificate from the list or from the Documents section that is located in the bottom of this page.

Maximum external dimensions of the product (width x height):

990 x 3000 mm

Maximum external dimensions of the door frame (width x height):

990 x 2650 mm*

* with ALUSLIM-12 door panel

Door panel glass thicknesses:

6 - 10,76 mm*

* see Technical Description for detailed information

Soundproofing:

Rw = 38 dB*

* with ALUSLIM-12 door panel and 55.2SR glass

Technical Description

CBC5C2C1-92A5-4B07-AEC0-67D6B9485190

The symbol “GF” in the product name means a door frame with overlight and a glass door panel. The glass of the overlight is connected to the adjacent glass using glass tape.

The portal can be completed with 4 different door panels (single or pair doors):

  • ALUSLIM-12 door panel has only a 12mm thick aluminum frame in which it is possible to use glass or other material with a thickness of 8-10.76 mm. Standard max opening angle of the door panel is 165°, but in case of electric locking it’s reduced to 120°.
  • GD-12 door panel is a full glass door without frame on 3 sides and with a profile only on the hinge side. The thickness of the glass of the door panel can be 8- 8.76 mm.
  • The third option is a full glass door without frame. The thickness of suitable glasses is 8-10.76mm.
  • The fourth option is S-32 door leaf with 40×64 vertical aluminum profiles in which it is possible to use glass or other material with a thickness of 6 – 8.76 mm.

Possible types of glass are tempered, laminated or tempered-laminated. The surface of the glass can be bright, very bright, mass-tinted, background-painted or matte. Aluminum decor profiles can be installed on the glass, which can give the door panel an exciting look. The standard surface finish of aluminum profiles is natural (silver) anodizing but it is also possible to order a painted surface according to the RAL colour catalogue.

The standard fittings are:

  • For ALUSLIM-12 door panel, ASSA 565 lock case (Valnes E114 for EURO cylinder) and STRUCTO PIVOT hidden hinges. In case of electric locking standard fittings are lock case EL502, cable EA210 and lead cover EA280.
  • For GD-12 door panel, STRUCTO PIVOT hidden hinges and COLCOM 683W02 lock case.
  • For a full glass door panel, SH-S59-1 Silver hinges and COLCOM 683W02 lock case.
  • For a S-32 door panel, Abloy 3248 hinges and Abloy LC305-30 lock case.

It’s possible to use other fittings, but please contact our sales team about compatibility.

The range of thresholds includes an aluminum profile threshold with a silicone seal or a descending seal.

Openable side section ELZONE-92A can be installed on one or both sides of PORTA-53GF, which is ideal for connectors, switches, cabling, etc. Minimum width of the side section when installing electrical accessories is 140mm. More information about side sections under the product “ELZONE-92A”.

Soundproofing measured in laboratory (Rw) with ALUSLIM-12 door panel:

  • Rw = 31 dB (with 8mm glass and aluminum threshold).
  • Rw = 33 dB (with 10mm glass and aluminum threshold).
  • Rw = 38 dB (with 55.2SR glass and aluminum threshold).
  • Rw = 38 dB (with 55.2SR glass and descending threshold).

Maximum external dimensions of the product (width x height): 990 x 3000mm.

Maximum external dimensions of the door frame (width x height):

  • 990 x 2650mm (with ALUSLIM-12 door panel).
  • 990 x 2400mm (with GD-12 door panel and 8-8,76mm glasses).
  • 990 x 2400mm (with full glass door panel).
  • 1000 x 2400mm (with S-32 door panel).

Documentation

CBC5C2C1-92A5-4B07-AEC0-67D6B9485190

Compatible products

ELZONE - 92M

ELZONE - 120M

GLASSLINE - 30

GLASSLINE - 32

ALULINE - 6

ALULINE - 30
